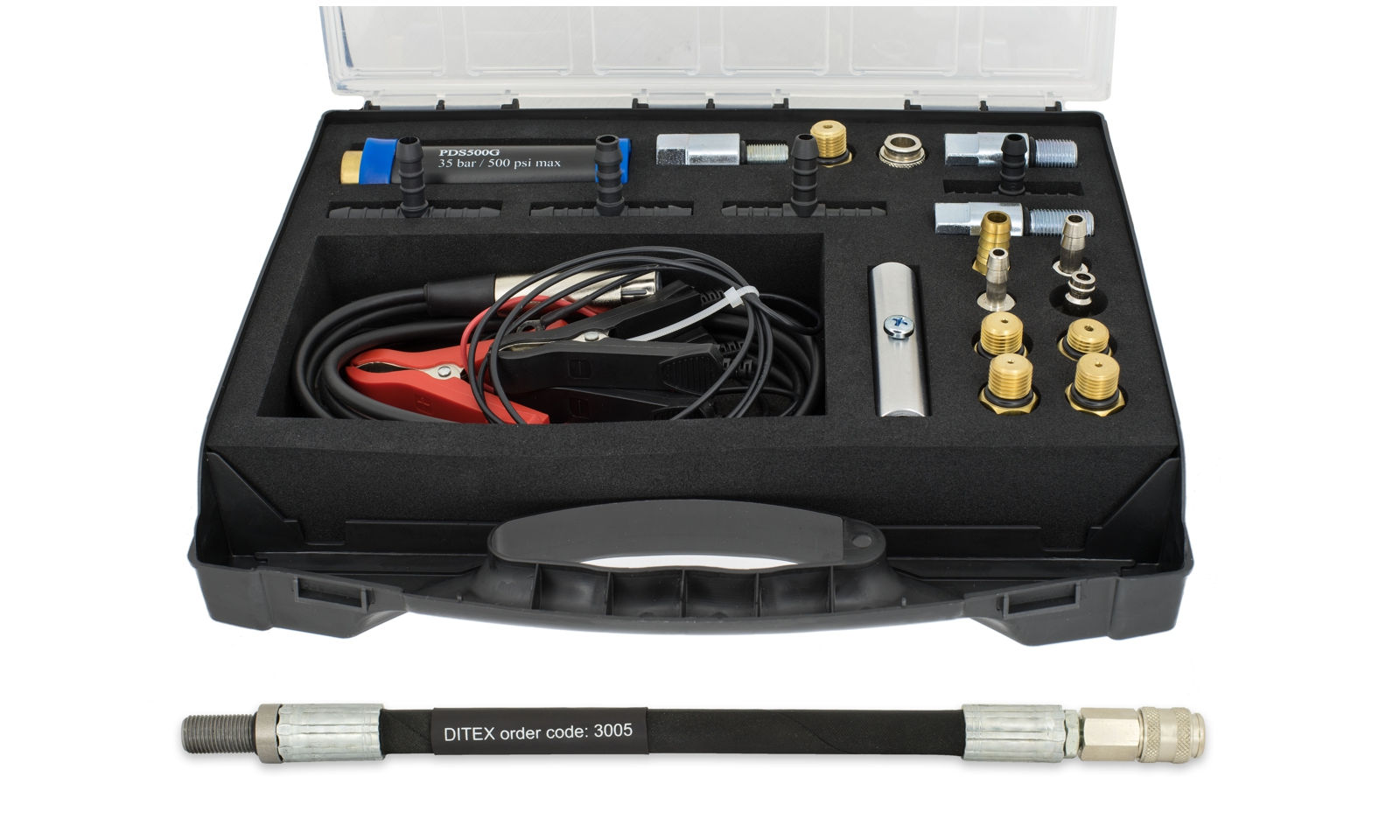

PDS500X Pressure Transducer Kit
In-cylinder pressure testing for finding serious engine mechanical defects
This Advanced Pressure Diagnostic kit allows you to monitor the engine’s dynamic pressure and vacuum and thus access its performance.
It’s designed for all auto repair shops and diagnostic specialists who would like to observe the engine absolute pressure diagram in real-time.
You will be able to find serious mechanical defects in the tested cylinder or the whole engine, find whether an extra air is entering the cylinder, detect clogging of the exhaust ports, reduced exhaust valve lift, or restricted exhaust.
Product code 3001 - Pressure Diagnostic Transducer PDS500x
Product code 3005 - Main Compression Adaptor - compression hose
Product code 3009 - Dual function cable
Product code 3110 - Precise Compression Adaptor for PDS500x (optional - not included in the kit)
Product code 3111 - Adaptor M10 x 1.0 short reach
Product code 3113 - Adaptor M14 x 1.25 short reach
Product code 3114 - Adaptor M14 x 1.25 deep reach
Product code 3115 - Adaptor M16 Ford Triton
Product code 3116 - Spark plug grounding clip adaptor
Product code 3120 - Thread adaptor G 1/4 male to 1/8-27 NPT female
Product code 3121 - Thread adaptor G 1/4 male to R 1/8 female
Product code 3122 - Thread adaptor G 1/4 male to G 1/8 female
Product code 3123 - Thread adaptor G 1/4 male to G 1/4 male
Product code 3124 - Thread adaptor G 1/4 male to 1/4"-18 NPT male
Product code 3130 - Mini industrial quick coupling adapter
Product code 3131 - G 1/8 BSP Female Mini Quick Coupling
Product code 3140 - 7 mm Hose Barb Adapter for Quick Coupling
Product code 3141 - 8 mm Hose Barb Adapter for Quick Coupling
Product code 3142 - 10 mm Hose Barb Adapter for Quick Coupling
Product code 3143 - Hose barb tee fitting 4mm x 8mm x 4mm
Product code 3144 - Hose barb tee fitting 6mm x 8mm x 6mm
Product code 3145 - Hose brass barb tee fitting 8mm x 8mm x 8mm
Product code 3146 - Hose barb tee fitting 10mm x 8mm x 10mm
Plastic case with EVA foam
